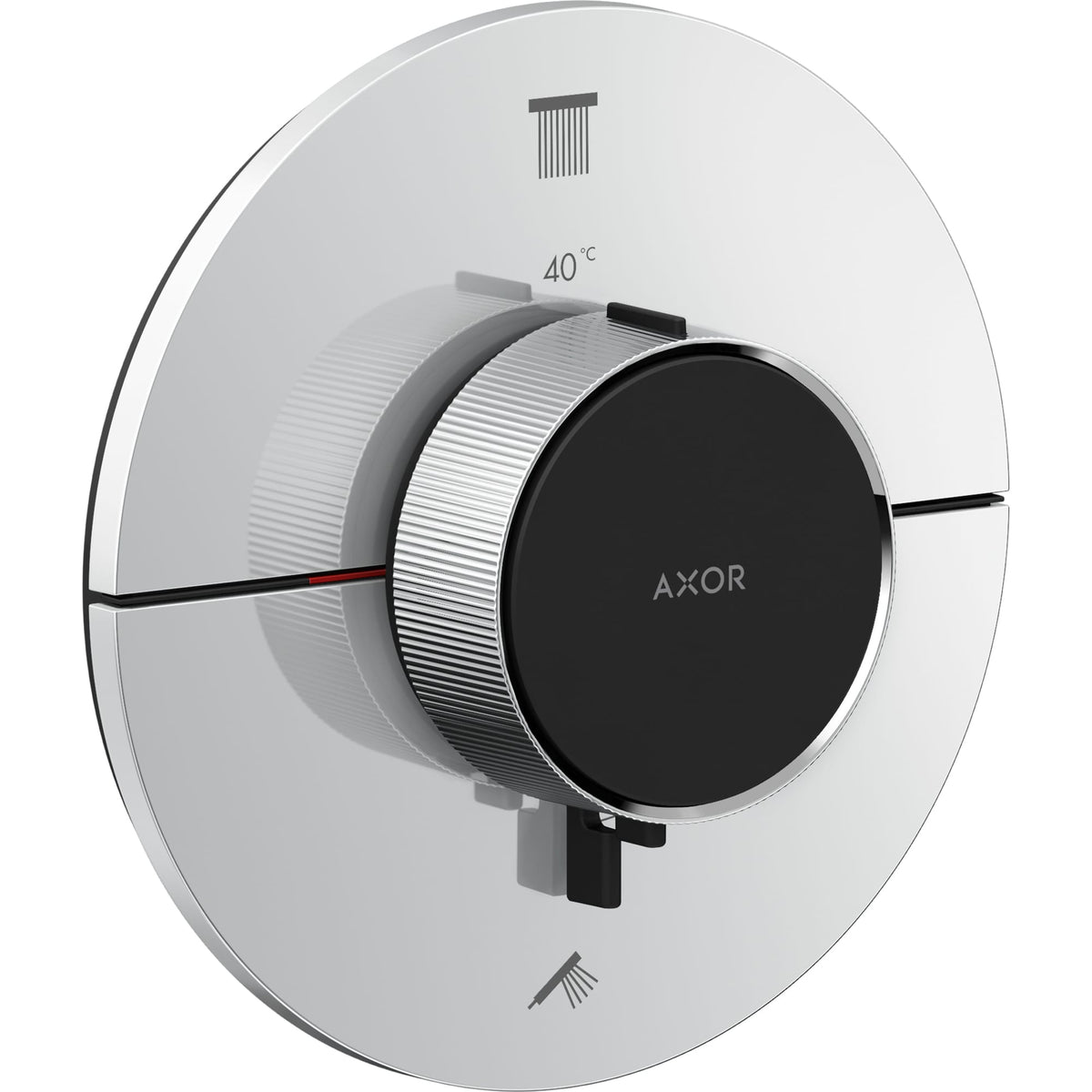

תרמוסטט 4 דרך ShowerSelect AXOR IDAXOR ShowerSelect ID Thermostat for concealed installation round for 2 functions

• 2 functions
• simultaneous use of several outlets
• comfortable turning on / off of outlets with large Select-paddle, precise temperature control thanks to vertical handle structure and haptic feedback from the thermostat handle
• water flow control with stop function
• thermostat cartridge, Start/stop valve to operate the functions
• maximum flow rate at 1 bar: 12,7 l/min
• maximum flow rate at 3 bar: 22,1 l/min
• flow rate upper outlet: 20 l/min
• flow rate lower outlet: 20 l/min
• min. operating pressure: 1 bar
• max. operating pressure: 10 bar
• flat escutcheon for more space in the shower
• escutcheon can be aligned by +/- 3°
• easy installation due to pre-assembled function block
• handles always at the same height regardless of the installation depth of the basic set
• Safety stop at 40 °C
• temperature limitation adjustable
• the thermostat offers the possibility for thermal disinfection
• material button: metal
• material handles: metal
• connection type: basic set iBox universal 2 (# 01400180)
• Select-paddles are delivered with lasered user symbols (Rain large and hand shower)
